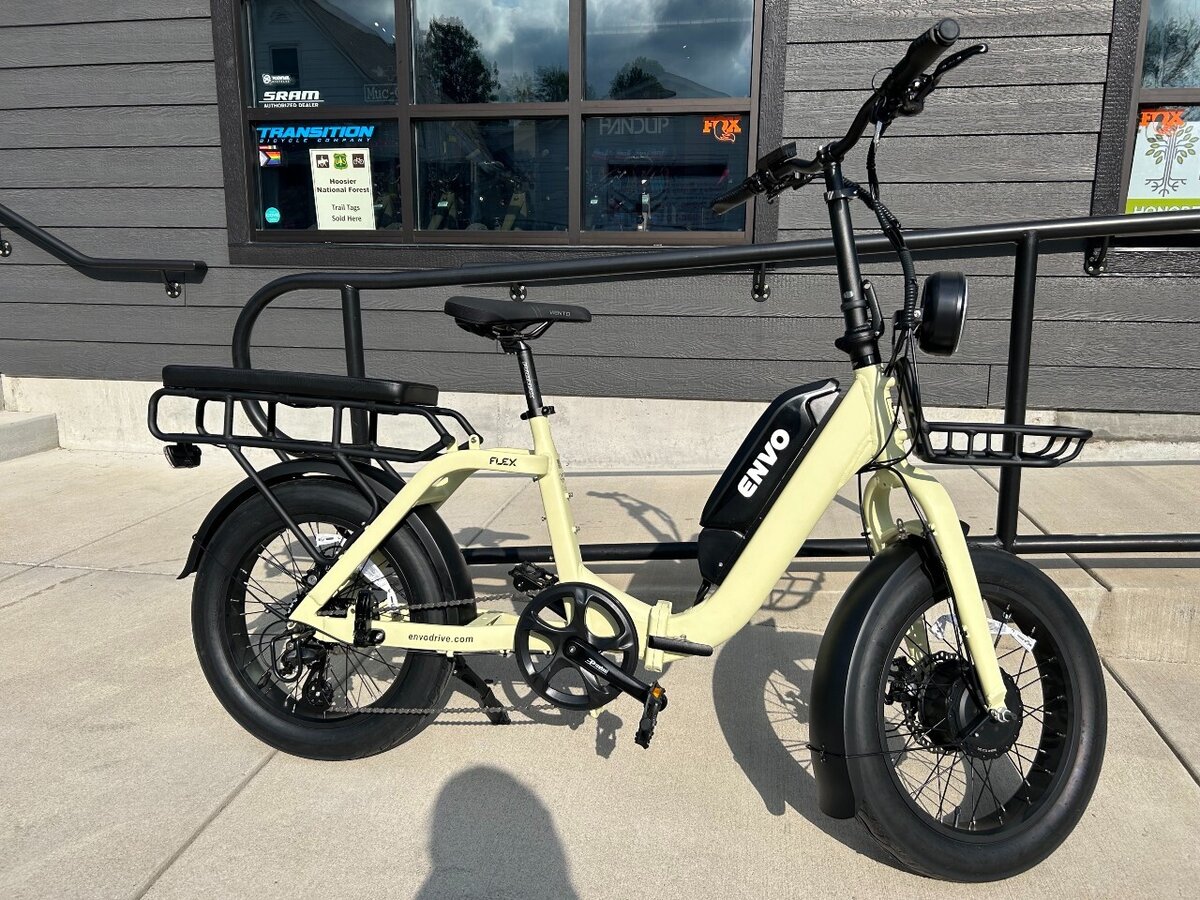

Envo Flex Urban Single Battery

32 Km/h Max Speed
20 mph
100-200Km / 62-125miles
Max Range With Single or Dual Battery
400 lb
Rated for 180Kg payload capacity
Foldable Step Thru Frame
The Only Folding Cargo Bike in Market
Lightest & Most Compact eTrike
in Cargo eBike Category
Lowest Q-factor
of Any Fat Trike in Market

Using ENVO Flex You Can Indulge in Adventures Throughout The Year on Trails and Snow
The proprietary front hub delivers a maximum of 500W of street-legal power and a range of up to 200Km / 125miles with a dual battery option. ENVO Flex allows you the FLEXibility to upgrade and change your eBike as your requirements change over time. The Flex Overland can be easily converted into the Flex SnowBike with the help of modular design components, allowing you the utility of two products on one platform.


ESE – ENVO Sustainable Engineering


Full cargo capacity, with front and rear racks and in conjunction with add-ons.


Torque emulating smooth PAS, providing incomparable riding experience.


20" fat urban tires – Perfect for low noise and low drag yet provides adequate grip and load capacity

Standard bike add-ons compatible
such as surfboard holder, golf bag holder, etc.

36V12.8Ah Battery Pack - Additional 36V12.8Ah
dual battery option available

FRAME
The Flex is built with a solid, lightweight, foldable and unisex hydro-formed aluminum alloy frame suitable for people from 4’11’’ all the way to 6’5” rider. It is capable of supporting up to 400lbs of payload and offers a step thru design, which makes it easy for the rider to get on and off. The frame is specially designed to minimize all the vibrations and noise from the drive- system, the right wheelbase for a high speed and a pleasurable ride on both paved and unpaved roads.

BATTERY PACK
The ENVO Battery powering the Flex Urban is super lightweight, down tube mounting Li-Ion pack in a stylish thin ABS case with an auto-connect socket, a charge indicator, security lock. The battery is removable and can reach a range of up to 100Km / 62mph per charge on pedal assist level 1. The battery can be charged on or off the bike frame using the little portable CC-CV smart Li-Ion battery charger. The ENVO Battery is an A-grade branded Li-Ion battery, comprising of LG or Panasonic Li-Ion cells and a BMS that avoids battery from overcharging, overloading, and other hazardous activities, thereby increasing both cyclic and calendar life of the battery. Battery cells have been selected for best operating in freezing temperatures. Flex comes with a dual battery option, allowing you to go twice as far in your travels. Dual batteries on Flex Urban gives you 920Wh of battery capacity, allowing you to travel up to 200km / 125miles on a single charge.

E-ASSIST SYSTEM
The ENVO Flex is equipped with an advanced pedal-assist sensor with an optimized torque emulation software. The advanced torque emulating Pedal Assist Sensor (PAS) signals the controller to run the motor between 5 levels of pedal assist, providing a boost to your pedaling depending on the level of assistance you select while riding. The ENVO Flex is equipped with an on-demand thumb throttle that gives you an extra boost which activates the motor proportionally to the twist, does not matter if you are pedaling, to give you a fully electric ride in case you cannot pedal or need an instant acceleration or uphill push.

GEARED MOTOR HUB
ENVO FLEX Urban is equipped with a sealed, powerful, upkeep free, geared hub motor that offers 500W power and 60Nm torque. Our motors are designed efficiently and hence are lighter than most powered geared hub motors in Canada, yet they deliver high torque and efficiency. These ENVO motors are developed for over 20,000 Km (12,500 miles) of maintenance-free ride.

ADJUSTABLE STEM
The FLEX Urban comes with an adjustable telescopic handlebar, this lets the rider do the ergonomic fine tuning allowing them to choose efficient pedaling position.

ELECTRIC BIKE TIRES
Flex Urban comes with 20inch urban style fat tires. These fat tires are cushion enough to improve ride comfort, dynamic maneuverability, and handling in different terrains. Tires are fat and knobby enough for the best grip on wet cement, asphalt paved, dirt or gravel trails which creates minimum noise and drag for normal urban paved rides.

ELECTRIC BIKE DISK BRAKE
Top of the line mechanical disk brakes equipped with electric cut-off sensors provide more safety to the bike as well as the rider.

TRANSMISSION SYSTEM
Well-engineered 52T chain ring and 8 speed 11-32 teeth cassette transmission help you overcome up to 25% grade when climbing a hill on gear 1 or 40km/h (25mph) speed on gear 8 with gentle peddling.

REAR RACK
ENVO Flex comes with a specially designed sturdy rear rack with rating of 150 lbs weight and capable of fitting two child seats (longer version). The rear rack comes with a cushion (Just on short racks) allowing a second adult to ride on the ebike.

HEADLIGHT
The FLEX Urban is fitted with high efficiency and bright LED headlight powered by the main battery and controlled by a keypad on the handlebar.


TAIL LIGHT
Taillight and reflector provide more safety riding in the dark. It powers up once the headlight is switched on. These taillights also double as brake light, turning on when brake is applied.

SADDLE
The unisex saddles, professionally designed with cuts and curves for high performance pedaling, and wide enough for long upright cruises, are the most relaxing, cushion saddles with ultimate comfort and style for all riders.
