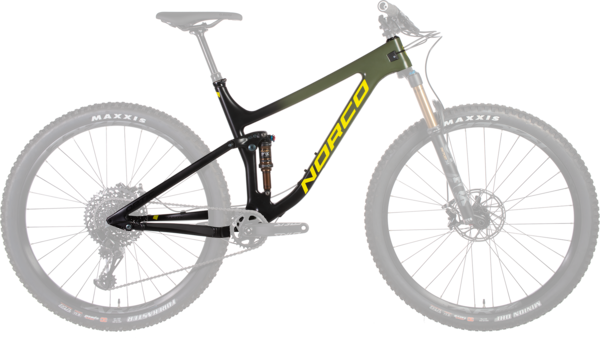

Norco Optic Carbon Framekit
$1,299.00 - $3,099.00
$1,699.00 - $3,099.00
Details
The Optic Carbon is a fast-pedaling trail bike that rides with just the right mix of cross-country efficiency and all-mountain capability. Ride faster, with more control, and complete confidence – the Optic gives you a whole new perspective on the trail and is the ideal bike for all-day trail adventures.
Wheel size:
Sizes X-Small–Medium: 27.5-inch
Sizes Small–X-Large: 29-inch
Accepts 130-140mm-travel fork (sold separately)
Contact us for parts packages
Specs
| Frame | Norco Optic, Carbon Front Triangle and Seat Stay, Aluminum Chainstay and Linkarm, 110mm (29") | 120mm (27.5") Travel, Boost 12x148mm TA Dropouts |
|---|---|
| Rear Shock | Fox Float DPS Factory, 190x50.8mm, EVOL/Kashima Coating |
| Axles | Rear: 148 x 12mm TranzX TA alloy w/allen key |
| Fork Compatibility |
140mm: 27.5" 130mm: 29" |
| Wheel Compatibility | 27.5" or 29" |
| Accessories & Extras | Norco Alloy Nutted Seatpost Clamp |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Green / X-Small / 27.5-inch | 058817352027 | 650030410115 | |
| Green / Small / 27.5-inch | 058817352034 | 650040410115 | |
| Green / Medium / 27.5-inch | 058817352096 | 650050410115 | 210000000169 |
| Green / Small / 29-inch | 058817352041 | 650040410112 | |
| Green / Medium / 29-inch | 058817352058 | 650050410112 | |
| Green / Large / 29-inch | 058817352669 | 650060410112 | |
| Green / X-Large / 29-inch | 058817352768 | 650070410112 |
